Application
|

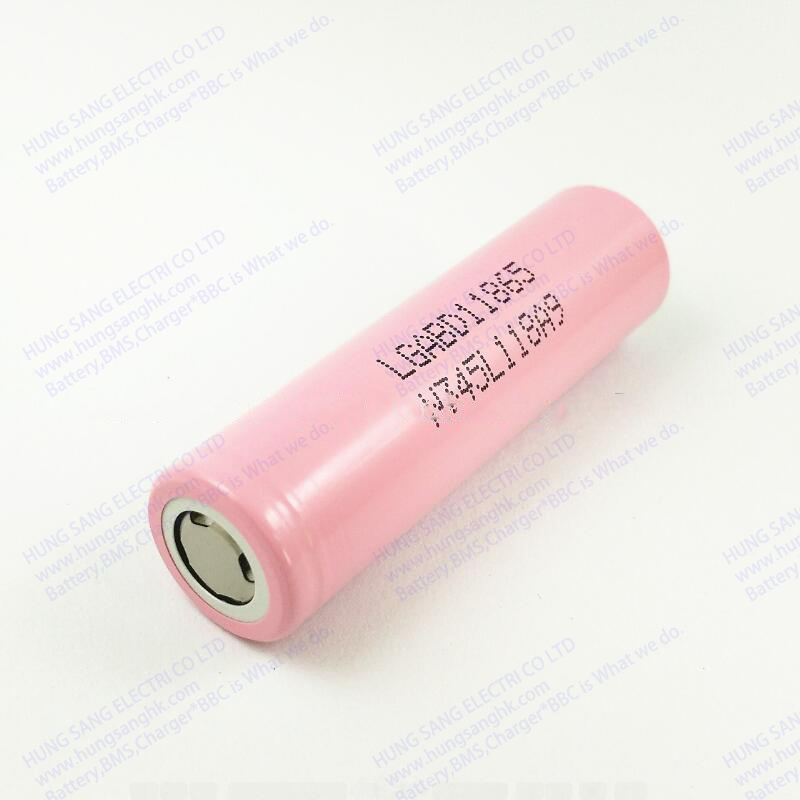

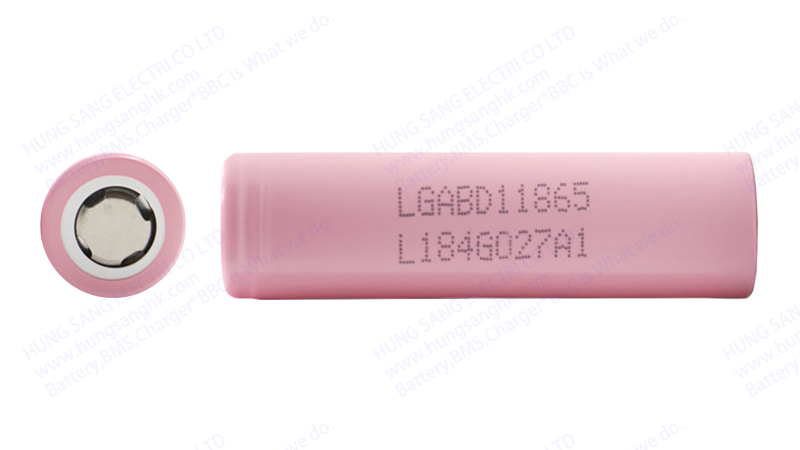

P/N: ION-LG1865-ABD1-S1P1-11.1WH |
||
|
Applications:
Laptop Type: Li-Ion MFR: LD Chemical |
||
|
No. |
Descriptions of Parameter |
Data |
|
1 |
Voltage
Rated |
DC
3.75V |
|
2 |
Peak
Voltage on charging |
4.35V |
|
3 |
Bottom
Voltage on discharging |
3.0V |
|
4 |
Capacity
Rated |
3000Ah |
|
5 |
Power Rated |
11.1Wh |
|
6 |
Constant
Discharge Current max. |
5.8A
*2C5; |
|
7 |
Constant
Charge Current max. |
2.9A
*1C5 |
|
8 |
Top Shape |
Flate |
|
9 |
Dimensions:(Diameter
* Height) |
D.18.29mm; H.65.05mm |
|
10 |
Weight |
48.5g |
|
11 |
Resistance |
70mΩ |
|
12 |
Packing |
200cells
per carton; G.W.9.8KG per carton. |
