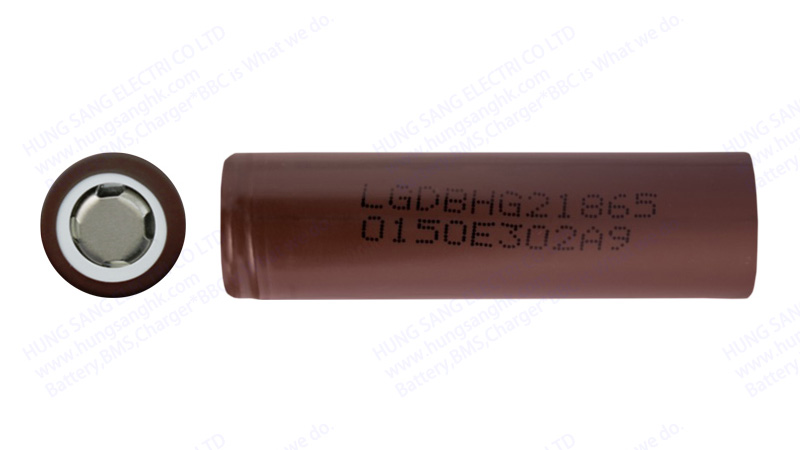

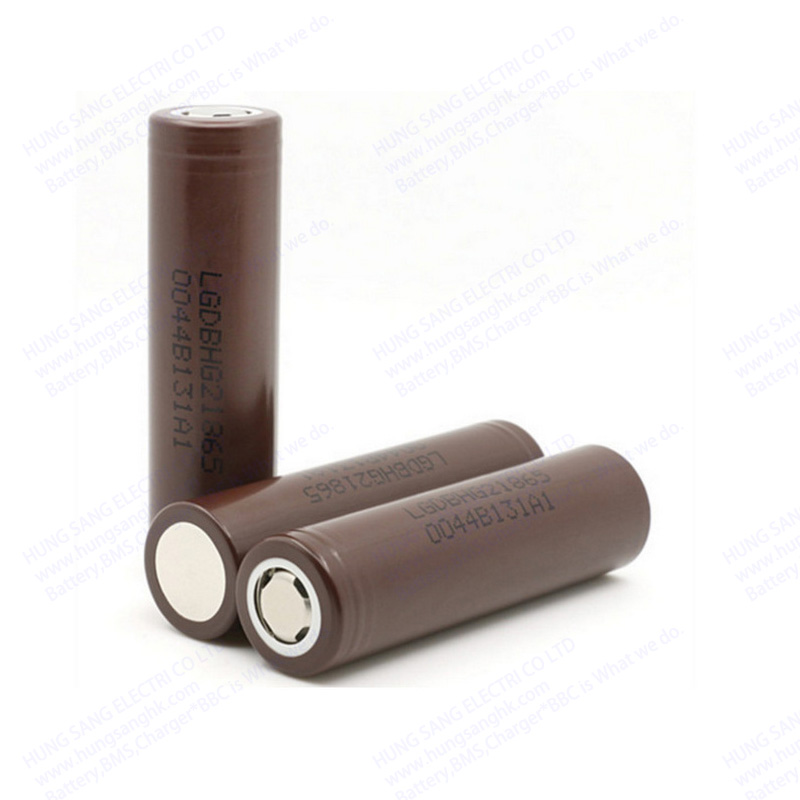

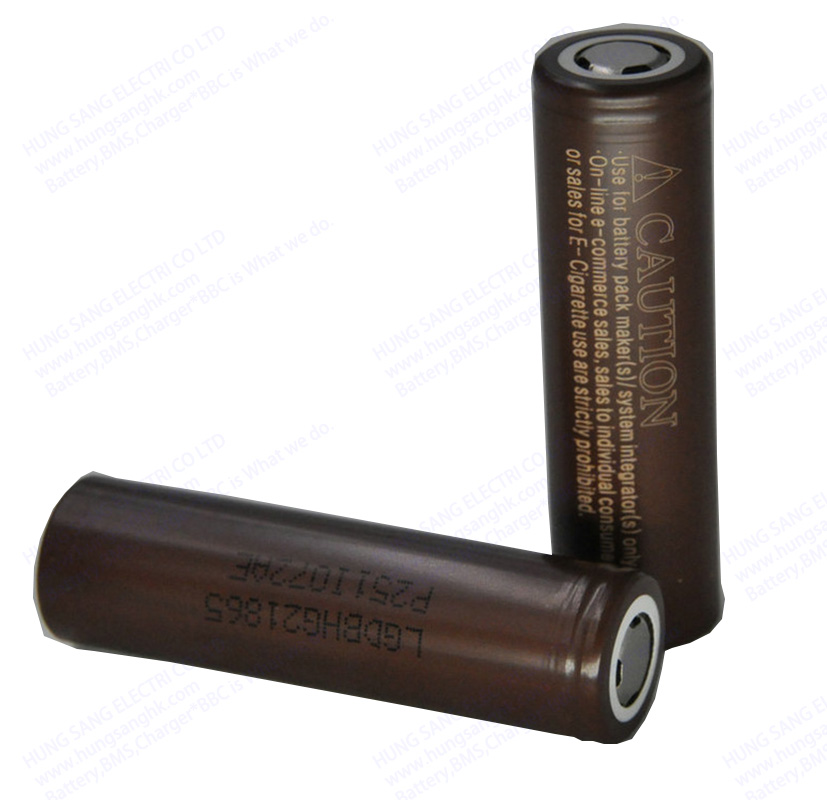

P/N: ION-LG1865-DBHG2-S1P1-10.8WH

Applications: Power Tool           Type: Li-Ion, High Power      MFR: LG Chemical

No.

 Descriptions of Parameter

Data

1

Voltage Rated

DC 3.6V

2

Peak Voltage on charging

4.2V

3

Bottom Voltage on discharging

2.0V

4

Capacity Rated

3000mAh

5

Power Rated

10.8Wh

6

Constant Discharge Current max.

20A *7C5;  35A peak

7

Constant Charge Current max.

4A  *1.4C5

8

Top Shape

Flate

9

Dimensions:(Diameter * Height)

D.18.39mm; H.65.15mm

10

Weight

48g

11

Resistance

30mΩ

12

Packing

200cells/carton; G.W. 9.9KG/CTN

13

Remarks

NO M.O.Q for new buyers.

OEM&ODM order always welcome

Longer Warranty available on request.

Delivery: 5-7 days

14

Remarks:

C5:  IEC standards define the discharge rate of battery, whose capacity shall be discharged fully in 5 hours.  1C5 equal to same capacity data; 10C5 means the discharge rate is 10 times than standard rate. 25C5 is the highest rate for 18650.
