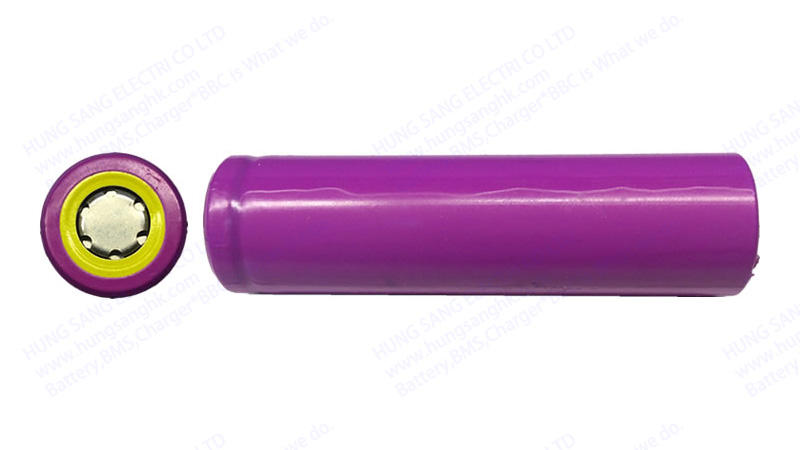

P/N: ION-PS18650TA--S1P1-9.36WH

Applications: Fishing Light         Type: Li-Ion       MFR: Panasonic Industrial

No.

 Descriptions of Parameter

Data

1

Voltage Rated

DC 3.6V

2

Peak Voltage on charging

4.2V

3

Bottom Voltage on discharging

2.5V

4

Capacity Rated min.

2580Ah

5

Power Rated min.

9.36Wh

6

Constant Discharge Current max.

5.8A *2C5;

7

Constant Charge Current max.

1.3A *0.5C5

8

Top Shape

Flate

9

Dimensions:(Diameter * Height)

D.18.24mm; H.65.1mm

10

Weight

48.0g

11

Resistance

70mΩ

12

Packing

200cells per carton; G.W.9.8KG per carton.

Remarks:

C5:  IEC standards define the discharge rate of battery, whose capacity shall be discharged fully in 5 hours.  1C5 equal to same capacity usually; 10C5 means the discharge rate is 10 times than standard rate. 25C5 is the highest rate for 18650
