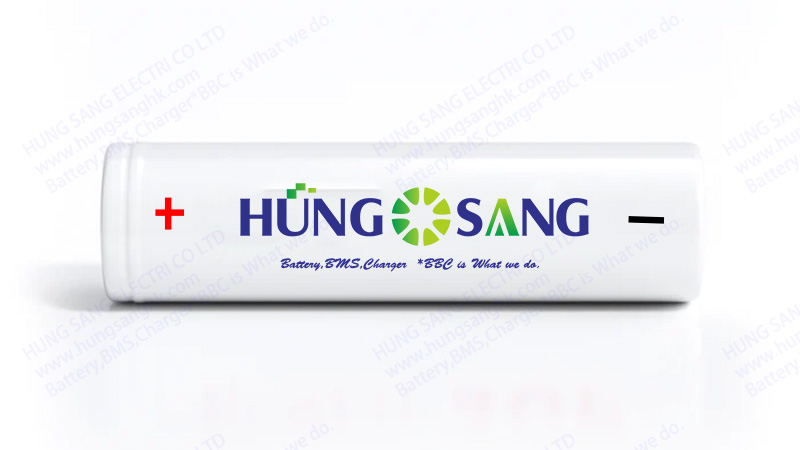

P/N: ION-CEL1865P-C2.2A15-8.14WH

Applications: Power Tools; E.V.      Type: Li-Ion   MFR: HUNG SANG Electric Co. Ltd

No.

 Descriptions of Parameter

Data

1

Voltage Rated

DC 3.7V

2

Peak Voltage on charging

4.2V

3

Bottom Voltage on discharging

2.5V

4

Capacity Rated min.

2200Ah

5

Power Rated min.

8.14Wh

6

Constant Discharge Current max.

15A *7C5

7

Constant Charge Current max.

2.2A *1C5

8

Top Shape

Flate

9

Dimensions:(Diameter * Height)

D.18.5mm; H.65.3mm

10

Weight

45.0g

11

Resistance max.

25mΩ

12

Packing

200cells per carton; G.W.9.9KG per carton.

Remarks:

C5:  IEC standards define the discharge rate of battery, whose capacity shall be discharged fully in 5 hours.  1C5 equal to same capacity usually; 10C5 means the discharge rate is 10 times than standard rate. 20C5 is the highest rate for 18650
