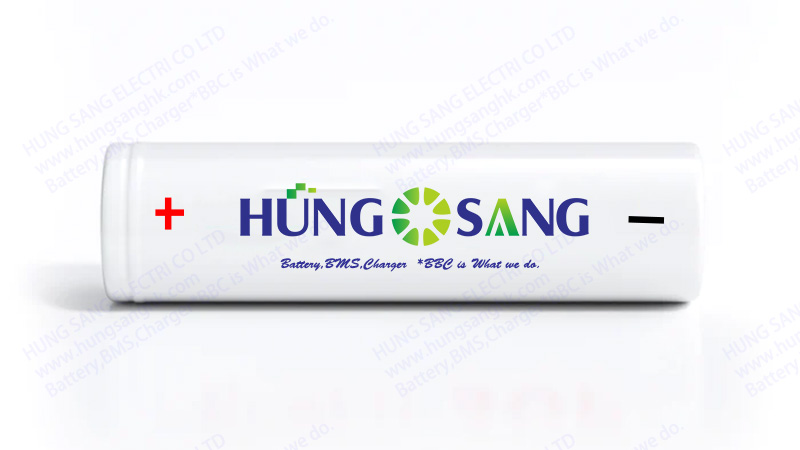

HUNGSANG Lithium Ion 18650 Battery 3.6V 2.5Ah 9.0WH in Power Tool

Application

HUNGSANG Lithium Ion rechargeable 18650 battery 3.6V 2.5Ah 30A 9.0WH high-power-type wildly used in Power Tool Remote Control Plane Vacuum Cleaner Fan Fishing Light Bluetooth speaker LED Light Beauty Instrument Water Mini-pumper Pet medical instruments Bicycle Pedicab Electric Cart，Electric Cigarette.

Share with others.Tell something to us.

Simple Parameters

P/N: ION1-CEL1865-C2.5A30-9.25WH
Applications: Power Tools; E.V. Type: Li-Ion MFR: HUNG SANG
No.	Descriptions of Parameter	Data
1	Voltage Rated	DC 3.6V
2	Peak Voltage on charging	4.2V
3	Bottom Voltage on discharging	2.5V
4	Capacity Rated min.	2500Ah
5	Power Rated min.	9.0Wh
6	Constant Discharge Current max.	*30A 12C**5
7	Constant Charge Current max.	*6A 2.5C**5
8	Top Shape	Flate
9	*Dimensions:(Diameter Height)**	D.18.5mm; H.65.3mm
10	Weight	47.0g
11	Resistance max.	25mΩ
12	Packing	200cells per carton; G.W.9.9KG per carton.
Remarks: C5: IEC standards define the discharge rate of battery, whose capacity shall be discharged fully in 5 hours. 1C5 equal to same capacity usually; 10C5 means the discharge rate is 10 times than standard rate. 20C5 is the highest rate for 18650
