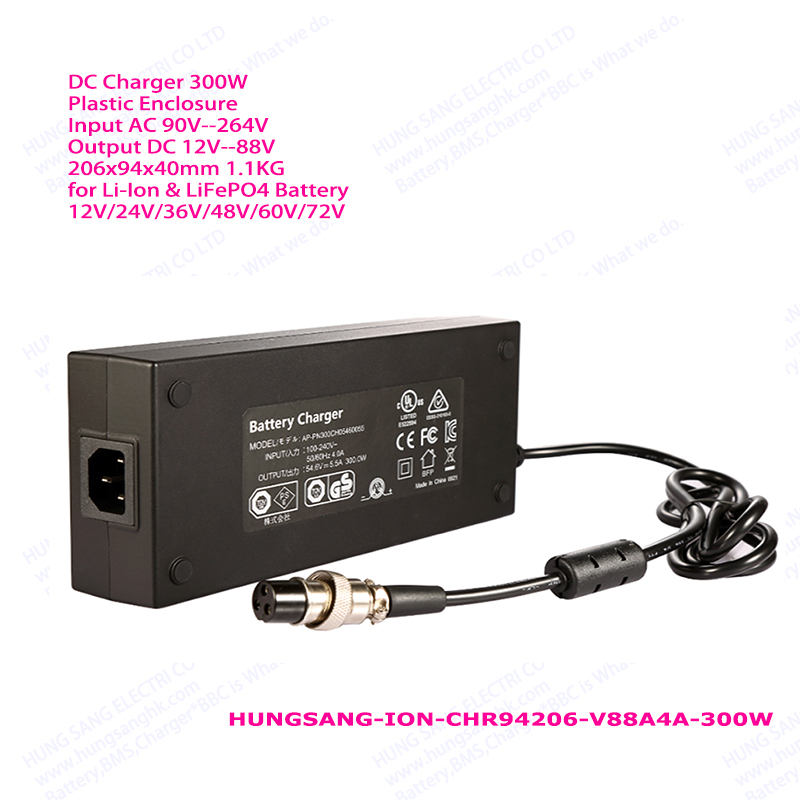

HUNGSANG-ION-CHR94206-V88A4-300W

Battery Matched: Li-Ion, Polymer & LiFePO4 Battery of 12V,24V,36V,48V,60V,72V

No.

Battery Voltage

Output Voltage

Output Current

Input Voltage

Volume

Weight

Certificates

1

12V

12.6V

20A

A.C.

90V-264V

mm

206x94x40

KG

1.1

PSE、CE、ETL、CB、GEMS、RCM、SAA

14.4V

20A

14.6V

20A

16.8V

20A

2

24V

29.2V

10A

A.C.

90V-264V

mm

206x94x40

KG

1.1

PSE、CE、ETL、CB、GEMS、RCM、SAA

29.4V

10A

3

36V

42V

7A

A.C.

90V-264V

mm

206x94x40

KG

1.1

PSE、CE、ETL、CB、GEMS、RCM、SAA

43.8V

6.8A

4

48V

54.6V

5A

A.C.

90V-264V

mm

206x94x40

KG

1.1

PSE、CE、ETL、CB、GEMS、RCM、SAA

54.7V

5A

58.4V

5A

58.8V

5A

5

60V

67.2V

4.4A

A.C.

90V-264V

mm

206x94x40

KG

1.1

PSE、CE、ETL、CB、GEMS、RCM、SAA

69.3V

4.3A

71.4V

4.2A

72V

4.1A

6

72V

84V

3.5A

A.C.

90V-264V

mm

206x94x40

KG

1.1

PSE、CE、ETL、CB、GEMS、RCM、SAA

87.6V

3.4A

7

Applications

Electric Bike, Cleaner, Electric Motorcycle, Home Energy Storage Systems, Home Power Tools, iRobot, SEGWAY, Electric Sweeper and so on.

8

MOQ

No MOQ asked;

9

OEM

OED/ODM orders available on request.

10

UL

50% UL cost asked for new order and buyers, cause of too high cost.

11

Communication

Smart charger of CAN/I2C/SMBUS available on request.

12

Remarks

Enclosure can be changed into metal case on request.
