HUNGSANG-ION-PCM2803-S1A3

Battery Matched: LiFePO4 3.2V 18650/26650                      Applications: Solar Light

No.

 Descriptions of Test

Data

1

Voltage

Charging Voltage

DC: 3.6V CC/CV

Charger Voltage Recommended

5V

2

Current

Constant Charging Current max.

3A

Constant Discharging Current max.

3A

Current consumption for single cell

≤10μA

Balanced Current on Charing

N/A

3

Over-Charge
(cell)

Over charge detection voltage

3.75±0.025V

Over charge detection delay time

1.0S max

Over charge release voltage

3.60±0.025V

4

Over-Discharge
(cell)

Over-Discharge Reaction Voltage

2.1±0.05V

Over-Discharge Reaction Delay

130 mS

Over-Discharge Voltage to be released

2.5±0.05V

5

Over-Current

Over-Current Detected Voltage

150±30mV

Over-Current Detected Current

4.5A

Reaction Delay

5-15ms

Release condition

Load Removed

6

Short-Circuit

Detection condition

Exterior short circuit

Detection delay time

50us

Release condition

Load Removed

7

Resistance

Protection  circuitry (B- TO P-)

≤40mΩ

8

Temperature

Operating Temperature Range

-40 to +70℃

Storage Temperature Range

-40 to +90℃

9

Weight

Gross Weight

 10g

10

Dimension

Diameter X Thickness

28x3 mm

11

Applications

Portable Consuming electronics device, like solar light

12

Remarks:

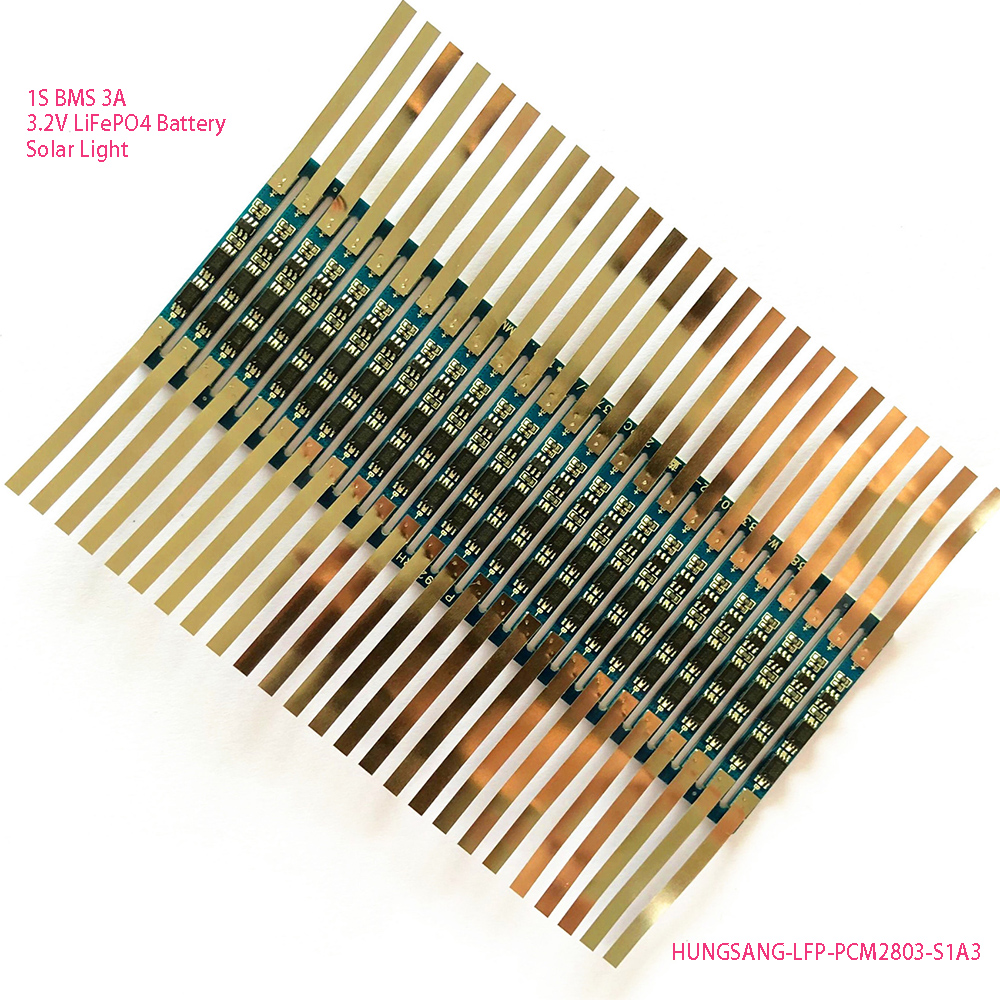

Nickel strips of plated-coating available on request
