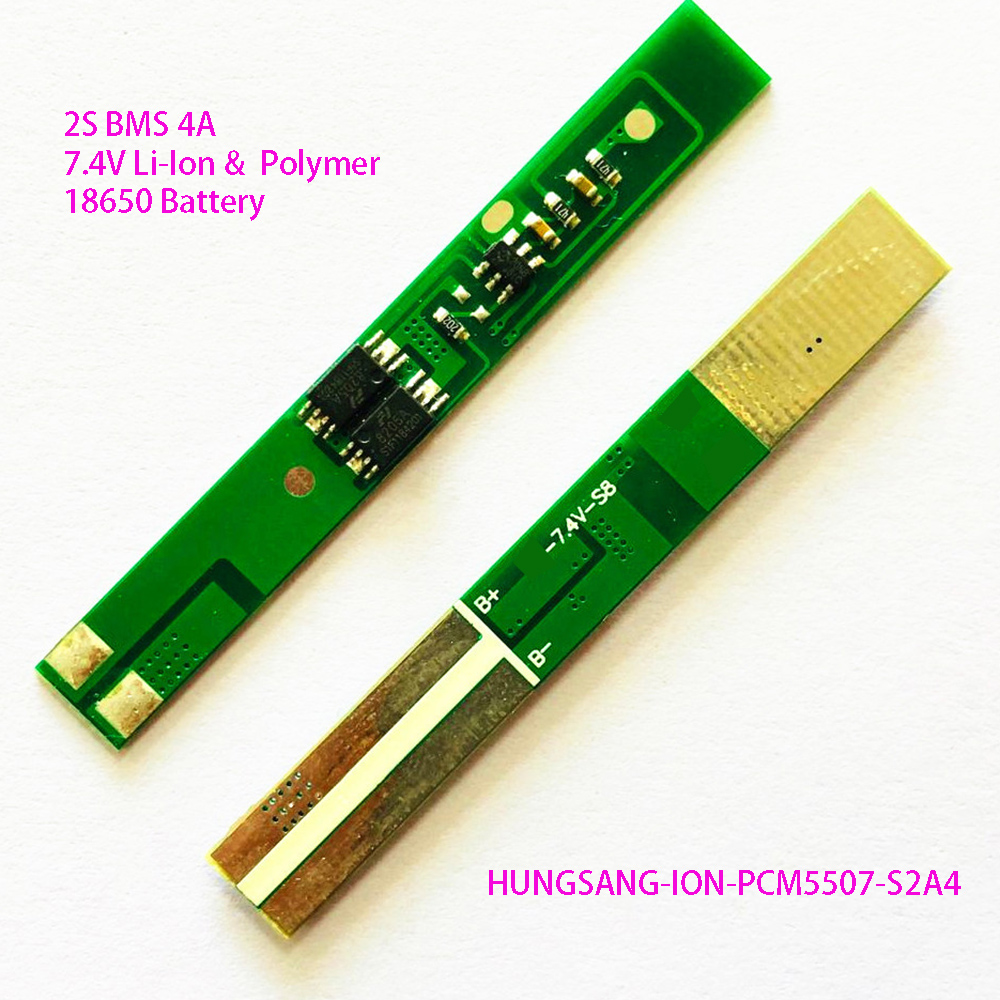

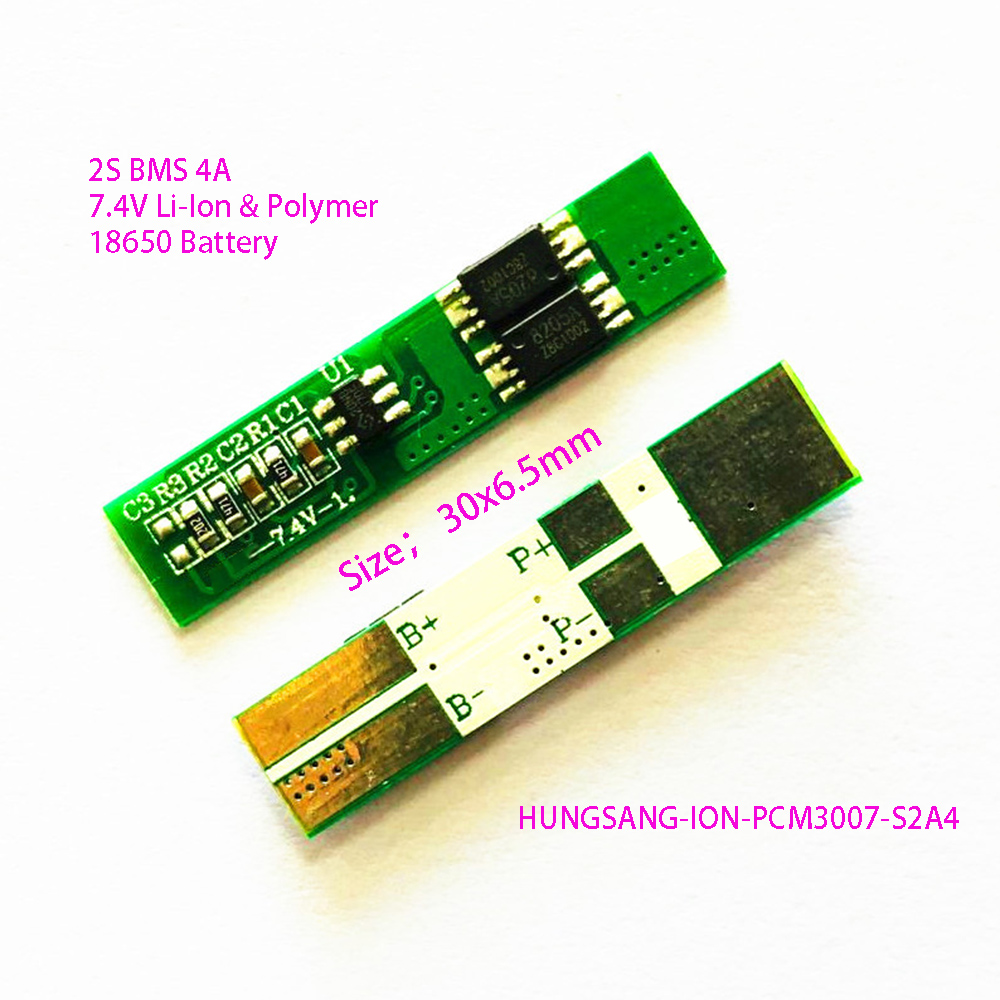

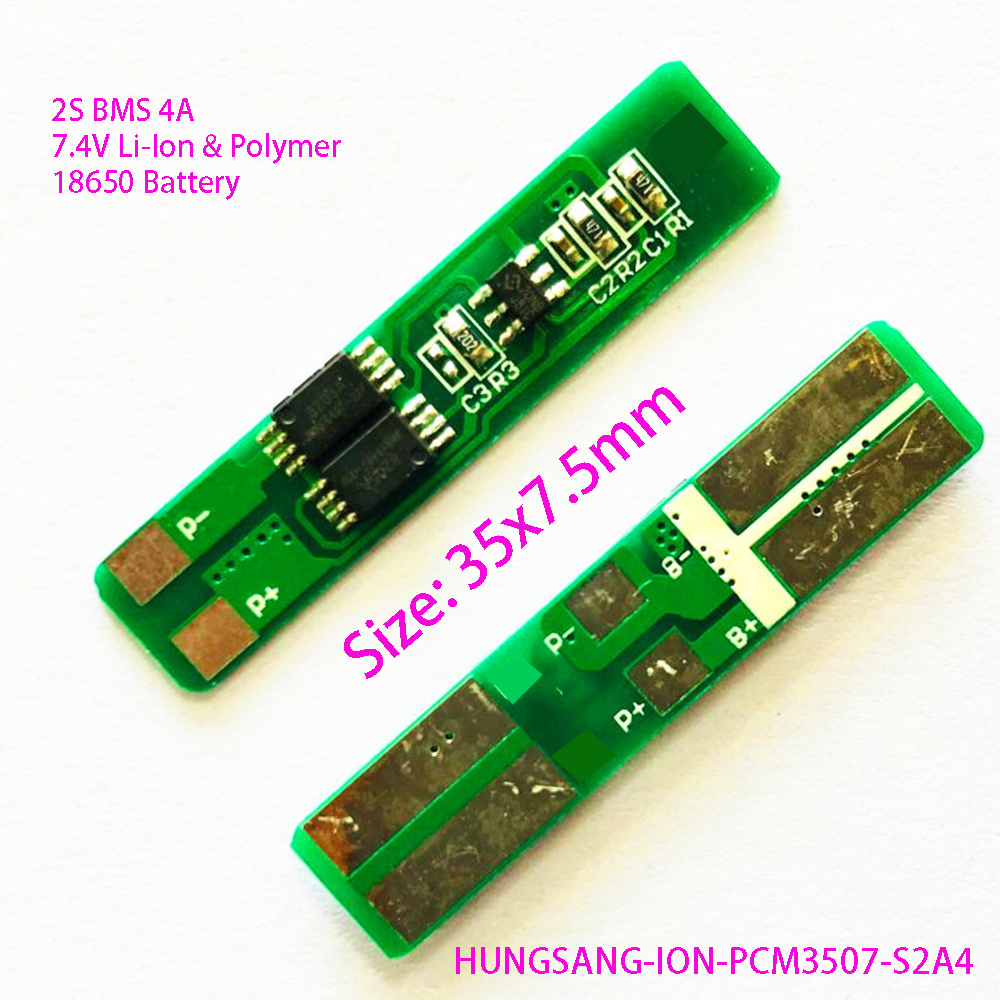

HUNGSANG-ION-PCM-Width-7mm-S2A4

Battery Matched: Li-Ion 7.2V/7.4V 18650                Applications: Solar Light

No.

 Descriptions of Test

Data

1

Voltage

Charging Voltage

DC: 8.4V CC/CV

Charger Voltage Recommended

9V

2

Current

Constant Charging Current max.

2A

Constant Discharging Current max.

4A

Current consumption for single cell

≤10μA

Balanced Current on Charing

N/A

3

Over-Charge
(cell)

Over charge detection voltage

4.28±0.025V

Over charge detection delay time

1.0S max.

Over charge release voltage

4.26±0.025V

4

Over-Discharge
(cell)

Over-Discharge Reaction Voltage

2.8±0.1V

Over-Discharge Reaction Delay

130 mS

Over-Discharge Voltage to be released

3.0±0.05V

5

Over-Current

Over-Current Detected Voltage

150±30mV

Over-Current Detected Current

6A±0.5A

Reaction Delay

12±0.5ms

Release condition

Load Removed

6

Short-Circuit

Detection condition

Exterior short circuit

Detection delay time

300us

Release condition

Load Removed

7

Resistance

Protection  circuitry (B- TO P-)

≤40mΩ

8

Temperature

Operating Temperature Range

-40 to +70℃

Storage Temperature Range

-40 to +90℃

9

Weight

Gross Weight

 10g

10

Dimension

Diameter X Thickness (mm)

15/26/30/35/45/55x6.5

11

Applications

Portable Consuming electronics device, like solar light

12

Remarks:

Nickel strips of plated-coating available on request
