HUNGSANG-ION-PCM5282-S3A30-BAL Simple Specifications

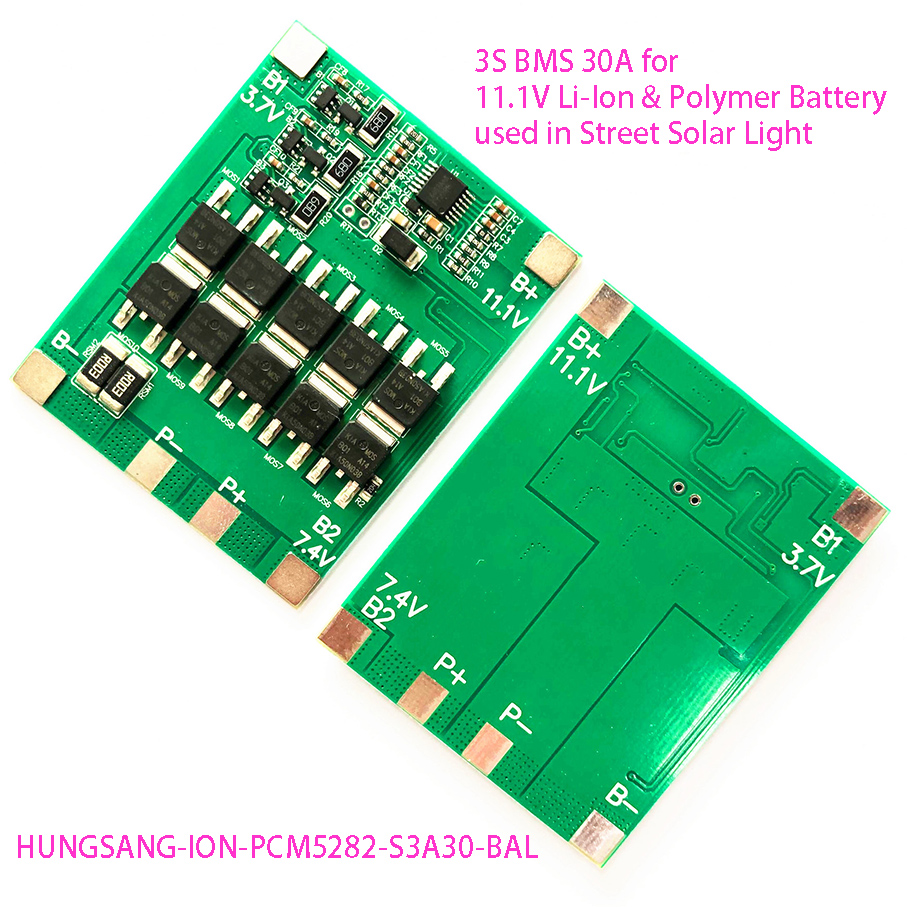

HUNGSANG-ION-PCM5282-S3A30-BAL

Battery Matched: Li-Ion 11.1V Battery Applications: Street Solar Light/HID Xeon Bulb

No.

 Descriptions of Key Performance

Data

1

Voltage

Charging Voltage max.

DC: 12.6V CC/CV

Charger Voltage Recommended

15V

2

Current

Constant Charging Current max.

10A *independent socket

Constant Discharging Current max.

30A *independent socket

Current consumption for single cell

≤10μA

Balanced Current on Charing

50mA

3

Over-Charge
(cell)

Over charge detection voltage

4.25V

Over charge detection delay time

1.0S

Over charge release voltage

4.075±0.025V

4

Over-Discharge
(cell)

Over-Discharge Reaction Voltage

2.8V

Over-Discharge Reaction Delay

150 mS

Over-Discharge Voltage to be released

3.0±0.1V

5

Over-Current

Over-Current Detected Voltage

150±30mV

Over-Current Detected Current

60A

Reaction Delay

12±0.5ms

Release condition

Load Removed

6

Short-Circuit

Detection condition

External short circuit

Detection delay time

500us

Release condition

Load Removed

7

Resistance

Protection  circuitry (B- TO P-)

≤40mΩ

8

Temperature

Operating Temperature Range

-40 to +70℃

Storage Temperature Range

-40 to +90℃

9

Weight

Gross Weight

40g

10

Dimension

Diameter X Thickness (mm)

52x82mm

11

Applications

Street Solar Light and HID Xeon Bulbs

12

Remarks:

Nickel strips/Connector/Heat-ShrinkSleeve available on request
